Dozers have been recognizable in their current form for nearly a century. After this much time a machine this basic must be fully evolved, right? Not so, say manufacturers. Their newest dozers are more advanced and more capable than ever before.
Technology marches on

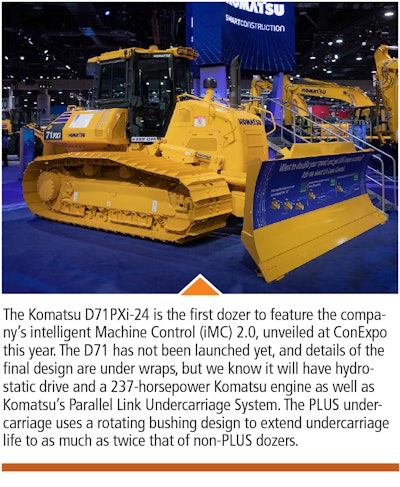

Much of the advancement of dozer design is owed to technology. One example is Komatsu intelligent Machine Control 2.0, which debuted at this year’s ConExpo.
Version 2.0 of iMC consists of a suite of features, including Proactive Dozing Control. While other systems are reactive and adjust blade position and drive torque in response to conditions, the iMC 2.0 package is proactive. It uses machine learning to update its internal map of the work area with each pass and anticipate the need to adjust performance parameters. Older systems had trouble with the first pass to remove topsoil. This new technology can be used from first pass to last and can start the job without GPS, drone or survey information.

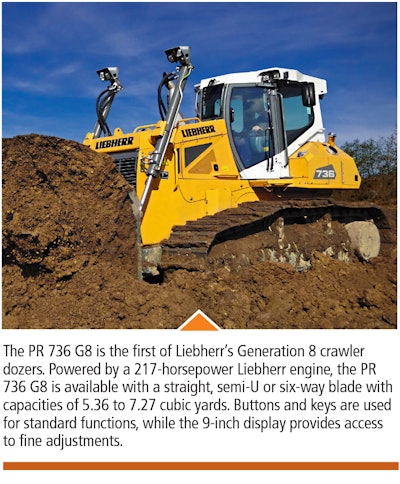

Liebherr offers three levels of assistance with its OAS – Operator Assistance Systems. Free Grade gives active blade stabilization during fine grading. Definition Grade is for automatic blade positioning when creating 2D grades. The optional 3D Grade machine control system will model complex terrain shapes. Liebherr Active Sensor Control stabilizes the blade in all axes and is standard equipment. Active Sensor Control relies on two independent, permanently mounted, integrated gyroscopic and inertial sensors and allows high grading speeds and high-precision fine grading.
Cat Stable Blade has new sensors and a new algorithm for smoother results in manual dozing. Slope Indicate and Slope Assist for 2D grading have also been improved. Cat 3D is now available in medium-size dozers. It is driven by three IMUs and two GNSS sensors and features an improved user interface.
The 850N is the first in the upcoming N Series dozer line from Case. One key feature is the inclusion of the Case Universal Machine Control platform, making each machine compatible with products from any of the Big 3 machine control technology providers: Topcon, Trimble and Leica Geosystems. Compatibility is enabled through the use of universal components, including wiring harnesses, jumpers, and brackets and mounts.
“This allows Case dozers to be deployed straight from the dealer into whatever grade control system the customer is currently using,” says George MacIntyre, product manager, Case Construction Equipment. “It also increases residual value, as that Case dozer will be compatible with any solution upon resale into its second and even third operational lifespan.”

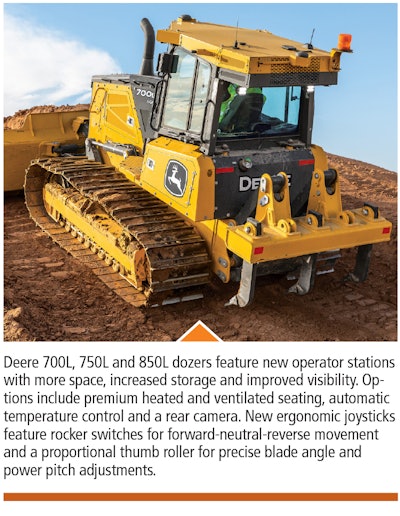

Transmissions on L Series dozers from John Deere come with factory presets. Operators can customize those presets to further personalize the machine. Presets can be configured to match operator preference or the demands of various applications. A personal identification number (PIN) can be used to automatically load operators’ settings when they start the machine.
Hard parts
“A key part of the upgrades on the 700L, 750L and 850L were the blade options,” says Cory Brant, solutions marketing manager for John Deere. L Series blades have an abrasion-resistant skin. New blade offerings, including a 161-inch option for the 750L, “ensure that every customer has the right blade for their operation.”
Next Generation features common to all include a fully automatic powershift transmission with lockup torque converter and new cabs with fully integrated ROPS for improved visibility, increased interior space and easier entry and exit. “Next Generation cabs are all-new, from the seats to the monitors and everything in between,” says Sam Meeker, Cat product application specialist. “This is, after all, the operator’s professional office environment, and it should appear and function accordingly.”
A ROPS canopy is standard on the Case 850N; an optional ROPS cab features floor-to-ceiling straight-panel glass doors for improved visibility to the blade. Cab-forward design, a sloped hood and a smaller front idler sprocket further enhance forward visibility. Case retuned the undercarriage and cab mounts on the 850N to reduce vibration. Noise drops to 73 decibels.
He says that dozers in this size class 20 years ago had all outside straight blades. Now the default is power-angle-tilt blades, “yet they’re robust enough to do the work of an outside straight blade.”
“D71-class machines are being used more and more for finish grading, not just moving large volumes of material,” adds Chuck Murawski, Komatsu product marketing manager for torque converter dozers. “Improved hydraulics, the HST and iMC 2.0 make this possible.”
