Trailers

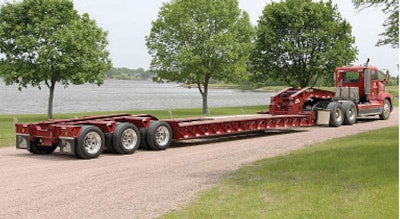

Five Position Door Untitled 1FIVE-POSITION DOOR

Trail King’s Advantage Plus! Series of hydraulic detachable gooseneck trailers features a five-position gooseneck door adjustment that allows for an 8-inch range of king pin height settings.

• Has a covered knuckle trough in the rear deck

• Includes 10-inch I-beam cross members with 4-inch stub cross members for 12-inch centers in the outer bays

• LED lights and a sealed plug-and-play electrical system comes standard.

Visit EquipmentWorld.com/info

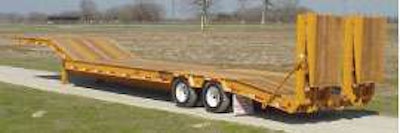

Hydraulic Ramps Untitled 1HYDRAULIC RAMPS

Trailboss’s line of Paver Special trailers come in a 25-, 35- and 50-ton low boy and a 20-ton tag-a-long.

• Custom bed lengths are available with a 6-foot dove tail and 11-foot hydraulically operated folding ramps

• 20-ton tag-a-long has 3-foot-wide ramps

• Hydraulic ramps have a 9 1/2-degree load angle.

Visit EquipmentWorld.com/info

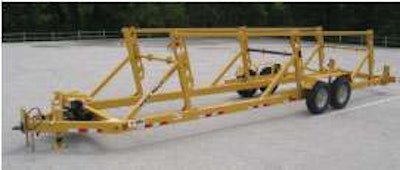

Self Load Untitled 1SELF LOAD

Roose Manufacturing’s RR-335 three-reel, self-load trailer carries reels up to 3,500 pounds with 125-inch diameters.

• Engine-powered hydraulic pump raises the reels

• Swing open rear gate and roll or back reels in

• Optional tension brake available.

Visit EquipmentWorld.com/info

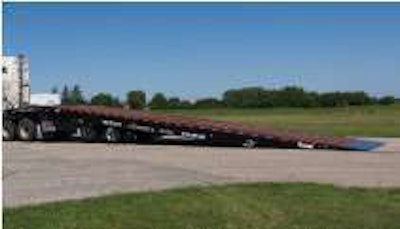

Grease System Untitled 1GREASE SYSTEM

The Landoll 400 Series traveling axle trailers were redesigned with additional frame strength, adding 5 tons of capacity.

• Designed with centralized-grease system

• Model 440 has a frame rating of 40 tons

• Triple-axle Model 455 has a 55-ton capacity.

Visit EquipmentWorld.com/info

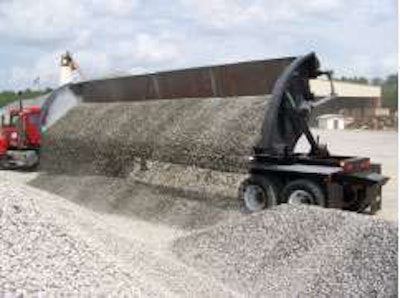

Hydraulic Lines Untitled 1HYDRAULIC LINES

The Clement SideStar2 side-dump trailer has hydraulic lines routed through the frame’s cross members.

• Chassis is 39 feet long with a 34-foot inside body length

• Frame design includes structure for mounting push-block or a pintle hook

• Has a two-speed suspension.

Visit EquipmentWorld.com/info

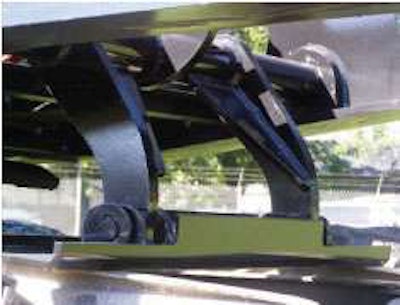

Two Legged Paddle Untitled 1TWO-LEGGED PADDLE

Rogers’ gooseneck jack paddle is installed on the bottom of the gooseneck to eliminate manual blocking of the trailer frame.

• Hydraulic cylinder pushes the two-legged paddle onto the trailer frame to support the detached gooseneck

• Standard on the Rogers’ CobraNeck detachable gooseneck

Partner Insights
Information to advance your business from industry suppliers

• Requires little to no tractor modification.

Visit EquipmentWorld.com/info

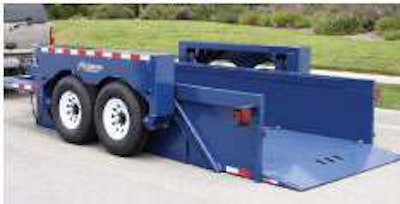

Automatic Air Untitled 1AUTOMATIC AIR

Air-Tow trailer decks remain level as they hydraulically lower, in less than 30 seconds, to the ground for loading.

• Features a fully self-contained, automatic air suspension system that adjusts for the loaded weight

• Tandem axle trailer with 16-inch wheels and electric brakes

• Carry capacity of 10,000 pounds.

Visit EquipmentWorld.com/info

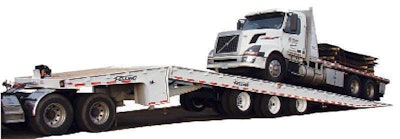

Sloped Neck Untitled 1SLOPED NECK

Tow equipment with Felling Trailers’ FT-80-3 tilt-slide axle, which runs on two “V” rollers and six flat rollers.

• Available in three load capacities and has a 6- to 7-degree load angle

• Has a sloped neck approach

• Standard deck is 102 inches wide.

Visit EquipmentWorld.com/info

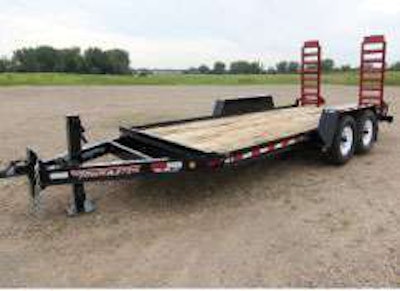

Common Frame Untitled 1COMMON FRAME

Towmaster’s T-Series and TC-series drop-deck trailers are built on a common frame where a base and full-featured model can be manufactured.

• Includes a six-position integrated hitch plate

• Has 3-inch, 80,000 psi junior I-beam crossmembers

• Features heavy-duty, one-piece formed fenders with back panel.

Visit EquipmentWorld.com/info

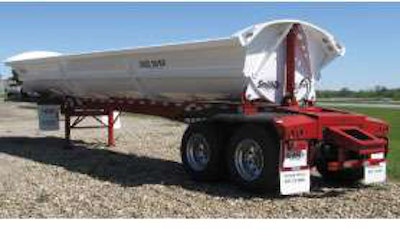

Round Top Untitled 1ROUND TUB

SmithCo’s Model SX2-4034 side-dump trailer has a true round, one-piece tub floor, spherical bearing-type hinges and polyurethane paint.

• Frame is 39 feet 5 inches long

• Has high-clearance, two-speed, non-load-bearing landing gear

• Tub is 34 feet long and 102 inches wide.

Visit EquipmentWorld.com/info

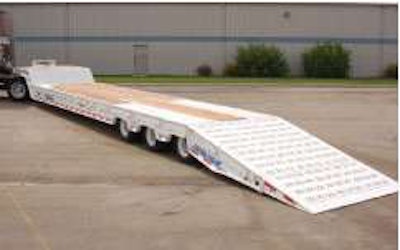

Heavy Hauling Untitled 1HEAVY HAULING

Haul multiple pieces of equipment with TrailMax’s hydraulic tail-heavy equipment trailer.

• Features high-tensile steel construction with 8-inch cross members on 12-inch centers

• FWTRD-100-HT model has a 100,000-pound distributed capacity and an 70,000-pound concentrated capacity

• Transition ramp has an 11-degree load angle.

Visit EquipmentWorld.com/info

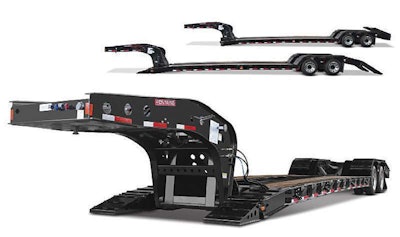

Lockable Storage Untitled 1LOCKABLE STORAGE

Fontaine’s Magnitude 35 heavy-haul trailer is equipped with a 24-foot clear deck length and a loaded deck height of 20 inches, with 6 inches of ground clearance.

• Bogie can be ordered with an optional

beavertail and spring-assisted rear ramps

• Built-in storage compartment has a lockable cover

• Can connect to the trailer on uneven ground.

Visit EquipmentWorld.com/info

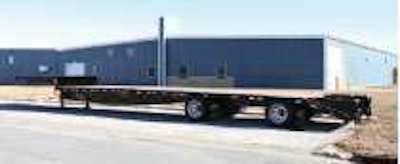

Hinged Untitled 1HINGED RAMPS

Jet’s dropdeck trailer with a beavertail has main beams with the camber automatically precut into the web to reduce stress. Options include:

• Spring-assist hinged ramps

• Manual raise and lower valve

• Dual tire-equalization system.

Visit EquipmentWorld.com/info

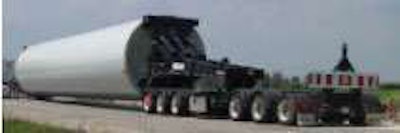

Mechanical Remote Untitled 1MECHANICAL, REMOTE

Talbert Manufacturing’s 75-ton double Schnabel trailer features a 13-axle hauling configuration for either an 80-meter wind tower base or a wind tower mid-section.

• Available in single and multiple combinations for

wind towers

• Equipped with both mechanical and remote rear

steer capability

• Interface area is covered with an ultra-high molecular weight plastic (UHMW).

Visit EquipmentWorld.com/info

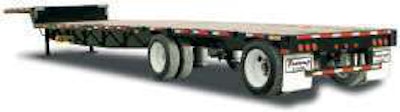

Standard Extreme Untitled 1STANDARD, EXTREME

The Transcraft DTL-2100 drop-deck platform trailers are shot-blasted before assembly and then primed with a zinc-rich epoxy.

• Standard Duty has a base weight of 11,147 pounds

• Beam rating of 60,000 pounds in 10 feet

• Extreme Duty model, DTL-3000, is available.

Visit EquipmentWorld.com/info

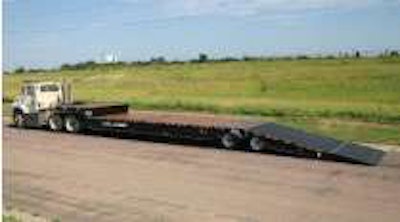

Steel Frame Untitled 1STEEL FRAME

The Trail-Eze TE70XT is available in either a standard 15-degree load angle or the 10-degree load-angle tail.

• No moving axles

• Frame is hi-tensile steel

• Axles have a 22,500-pound capacity with oil seal hubs.

Visit EquipmentWorld.com/info

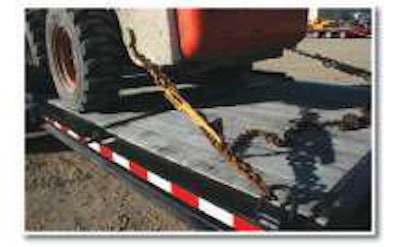

Tie-down Tips

Tie Down Tips Untitled 1Follow these tie-down tips and be confident in securing your load.

• The load should be distributed to balance equally on all axles and tires. When securing the load, chains should pull either in or out and never the same direction. Always use the designated D-rings or tie-down loops. When using stake pockets, drop the hook and chain through the pocket and come back up and hook on the top side. Never use a fender or frame lip, as the tie-downs could shift and the structure may not support the load.

• Inspect the chains and binders for wear, and never use a chain that has been welded or has a quick-link; these are weak points. Also, make sure the chain is rated for the capacity you are hauling.

• After the first 100 miles, check the load for shifting, loose tie-downs or chains and tire pressure on the machine you are hauling. If the tire pressure is low, bouncing could loosen the tie-down chains or straps. Check the load every time you stop.

Source: Towmaster
